Palram - Canopia 12x16 Arcadia Alpine Carport Kit
[HG9125]

Palram - Canopia Arcadia Alpine 12' x 16' Carport Kit - Gray  / Bronze (model HG9125)

The Arcadia Alpine 12' x 16' Carport is an excellent solution for protecting your vehicles and oversized vehicles from various outdoor elements. Its impressive 10 ft. clearance makes it particularly suitable for taller vehicles and trailers. The inclusion of virtually unbreakable 6mm polycarbonate roof panels, providing 100% UV protection and additional shade, ensures a durable and protective shelter.

The carport comes with pre-drilled holes, pre-cut panels, and required hardware, along with the anchor kit for securing the carport. The Polycarbonate roof panels have been designed to simply slide into place to eliminates the need for precarious roof work during assembly. The durable construction of powder-coated gray aluminum and galvanized steel frame not only ensures resistance to rust but also makes cleaning hassle-free with just a garden hose. Its high snow load capacity of at least 30lbs/sq. ft. and 75 mph wind load adds to its durability, making it suitable for various weather conditions.

The Alpine carport additional features includes Integrated gutters with downspouts efficiently direct rain away from the sides, preventing water damage to your vehicles. The wide entry with high clearance further enhances convenience, allowing easy access. The option for re-assembly provides flexibility in case of location changes, while the straightforward installation process requiring only two people and no advanced building skills or special tools ensures accessibility for most users. The Arcadia Alpine Carport offers both style and functionality that is perfect for protecting your vehicles.

Features:

• Pre-drilled and pre-cut for fast and easy assembly!
• Multi-purpose elevated structure can be used as a carport for your RV or a patio, playground or blecher cover
• Robust aluminum frame provides a durable, strong and corrosion resistant structure - powdered coated gray for extra protection
• Multi-purpose as a carport or a patio cover

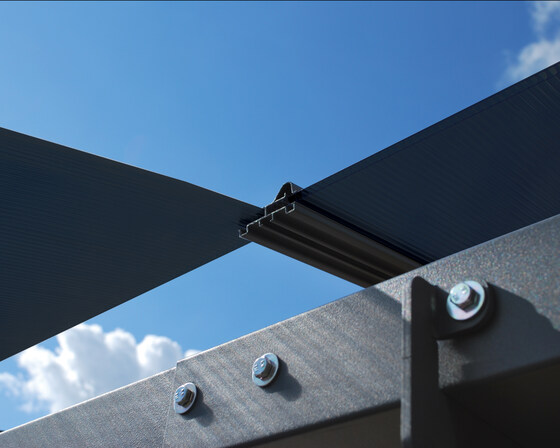

• Panels slide into place from below, no climbing on the roof
• 6 mm virtually unbreakable gray polycarbonate panels
• Block up to 99.9% harmful UV radiation and won't become brittle over time.

• Allows about 15% light transmission

• Wind resistance up to 75 MPH and a snow load of 30 lb. per sq. ft.
• Includes intregrated rain gutters and anchoring kit
• Can be adjusted to a height of 10'-1" or 11'-7" at the peak

• 10 Year Limited Warranty
• Free FAST Shipping!

Specifications:

Model: HG9125
Frame Color: Gray
Roof Color: Bronze
Style: Carport
Type: Permanent or Portable
Usage: Single Vehicle
Frame Material: Galvanized Steel
Roof Material: twin wall 6mm polycarbonate panels
Nominal Size: 12' Width x 16' Length x 12' Height
Measurements: 141"W x 197"L x 139"H)
Height Measurements: 139" Peak Height, 120" Side Wall Height
Light Transmission : 15%
Square ft. (rounded): 165
Total Product Weight: 400 lbs.
Boxes: 6
Shipping Method:Shipped via LTL Motor Freight Only, Curbside Tailgate Delivery

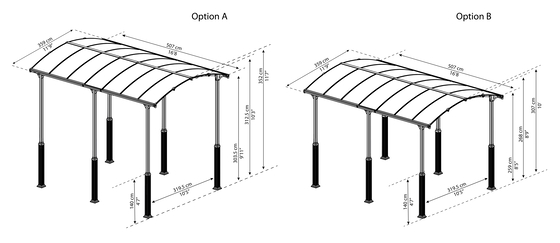

Palram - Canopia 12x16 Arcadia Alpine Carport Kit - Measurements!

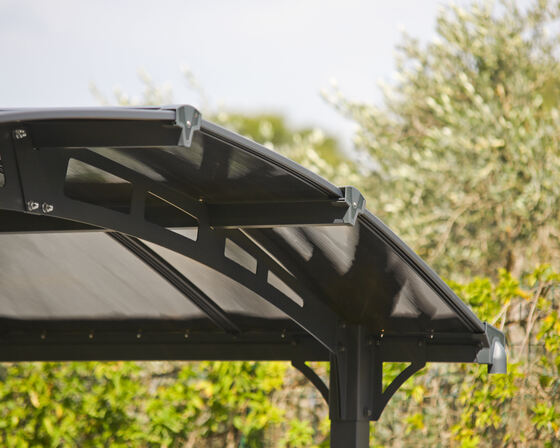

Palram - Canopia 12x16 Arcadia Alpine Carport Kit - Panels!

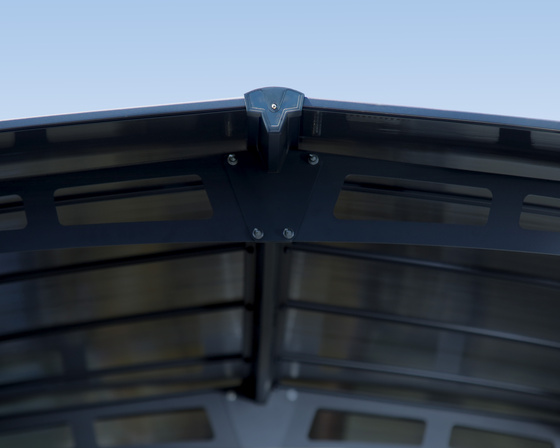

Palram - Canopia 12x16 Arcadia Alpine Carport Kit - Aluminum Structure!

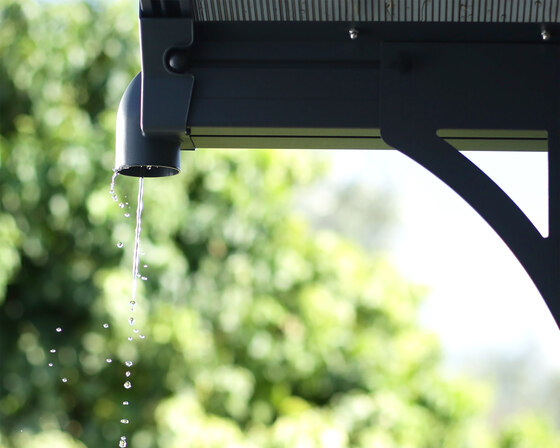

Palram - Canopia 12x16 Arcadia Alpine Carport Kit - Gutters!



Palram - Canopia 12x16 Arcadia Alpine Carport Kit - Legs!
