Arrow 12x29x9 steel carport in gray is perfect for vehicles, tractors,
4-wheelers, shelter from the elements, picnic or patio area and more!
Item On Clearance!
While Supplies Last!
FREE Fast Shipping!

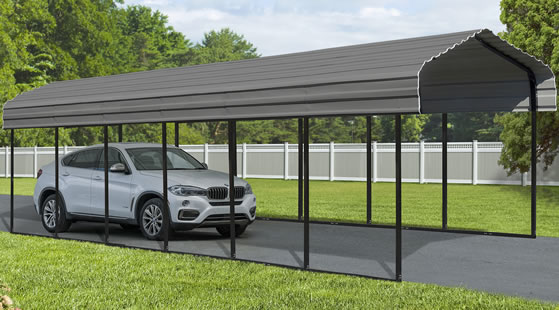

Arrow 12'W x 29'D x 9'H (10.5'H at Peak) Steel Auto Carport Kit - Charcoal (model CPHC122909)
Arrow 12x29x9 ft carport in charcoal gray color is a newly re-designed carport and
multi-use shelter that is wind and snow rated for maximum protection
against the elements! Our carport features a galvanized steel roof with
horizontal panels, and an industrial steel frame that has been powder
coated to resist corrosion and rust. This 12x29 ft carport has a wind
speed rating of 100 MPH and a snow / ground load rating of up to 35 lbs per sq ft.
Rain or shine - it doesn't matter, this carport is built to last! The
Arrow carport is a high quality steel structure that is perfect for
protecting cars, trucks, boats, tractors and even outdoor picnic or play
It's galvanized steel roof is made to protect against corrosion, rust and
the elements and features an attractive charcoal gray roof. The Carport is
assembled on our tough all-steel, powder coated 2 in. tube frame, made
to reinforce stability and strength in the structure. The premium powder
coating provides corrosion and rust resistance. Easy to install, the
Carport comes with slip-fit connections with pilot holes and
self-drilling screws making this unit easy to build straight out of the
Colors: Charcoal Gray roof with Black frame
Storage Area: 340 square ft. / 3305 cubic ft.
Exterior Dimensions: 146"W x 344.5"D x 126.75"H at peak
Interior Dimensions: 142"W x 344.5"D x 106.75"H
Building Weight: 906 lbs. (shipping weight 954 lbs.)
Warranty: 10 Years Limited Manufacturers Warranty
Ground Snow Load: 35 lbs. per sq ft
Wind Load: 100 mph
Free Fast Shipping!
*foundation / flooring materials not included
INDUSTRIAL GRADE FRAME
in. / 5,1 cm square tube / 15-gauge wall thickness delivers wind and
snow load strength and stability. Premium black powder coat finish
resists rust and corrosion. Rib spacing: 4.5 ft. / 1,3 m.
SLIP-FIT FRAME CONNECTIONS
- with pilot holes and self-drilling screws for easy assembly. Ready-to-build right out of the box.
- 10 ft. / 3,1 m horizontal roof panels with 29-gauge painted galvanized steel for corrosion resistance.
- Rounded eaves for additional protection from elements.
- 8 ft. 6 in. / 2,6 m peak height.
- Roof pitch: 3:12. 12 in. / 30,5 cm overhang at the gables.
- Charcoal Gray finish.
